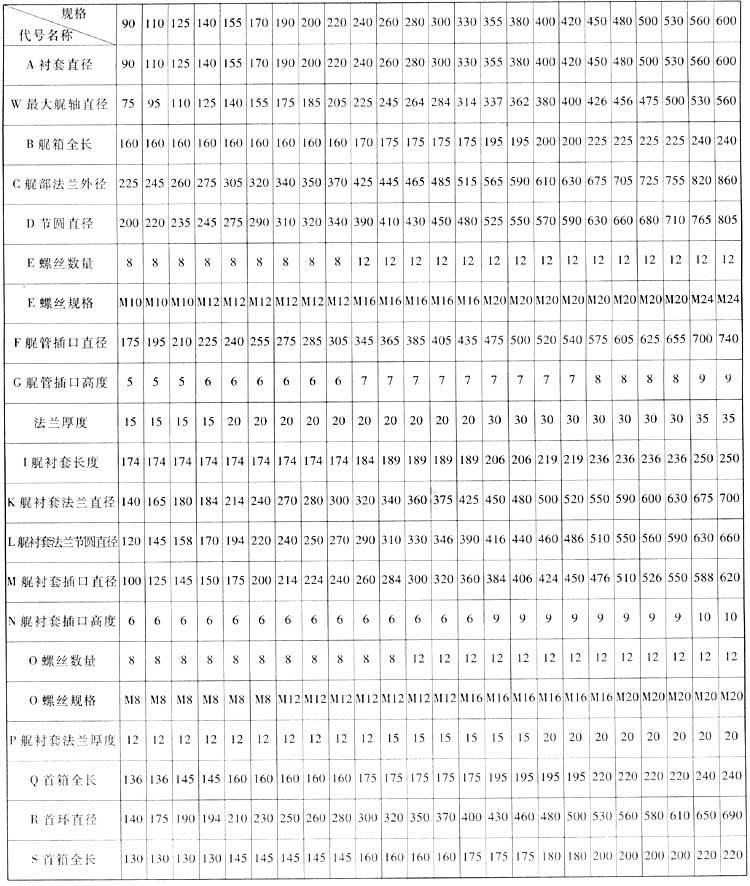

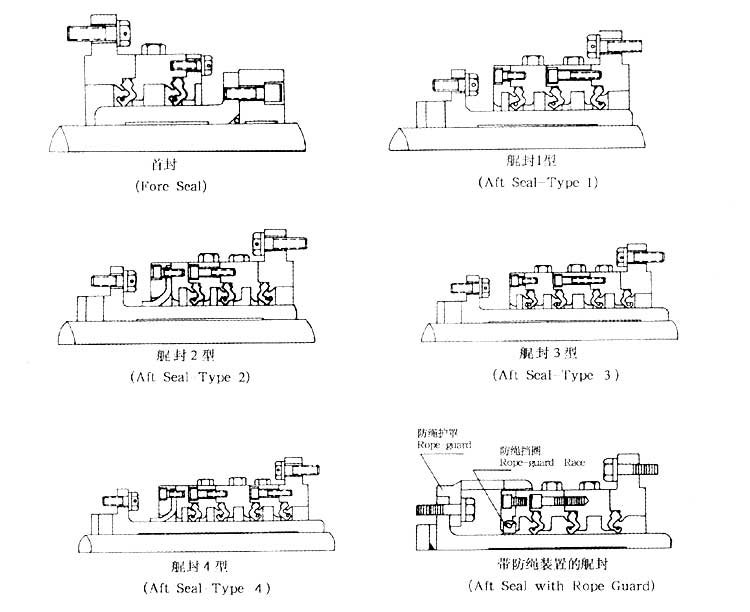

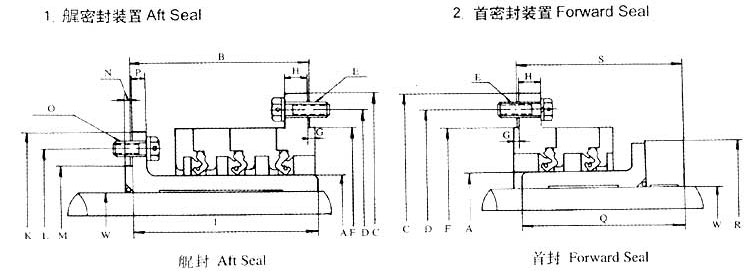

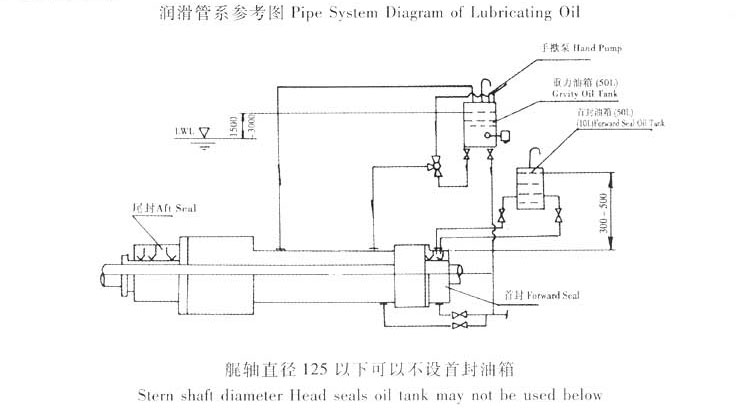

WTY系列船舶油润滑密封装置 一、技术参数Technical Data 衬套直径Diameter of the shaf tliner: ф110—ф600mm 可承受油压Permitted oil pressure: 0.098Mpa 允许油温 Permitted oil temperature:T-25℃~+110℃ 衬套线速度Linear velocity of the shaft liner:≤7m/s 允许泄油量Permitted oil leakage amount: ф110—ф300㎜：1—2I/dф330—ф600㎜：3—4I/d 二、型号说明Model description 1、 WTY：型号标志：艉轴油润滑密封装置 WTY：Series:Oil lubricated stern tube seal 2、 首封为Q，艉封为H Q：Forward seal H:Aft seal 3、 X:型号： 1 型为标准型，其中首封为二道密封圈，艉封为三道密圈。（采用标准型时可以不写） 2 型为1型基础上艉封增带防砂圈 3 型为艉封四道密封圈 4 型为3型基础上艉封增带防砂圈 4、 XXX：规格（即为轴套外径） 5、 FR：防绳装置 三、结构 Struture WTY标准型尺寸表 四、润滑系统
